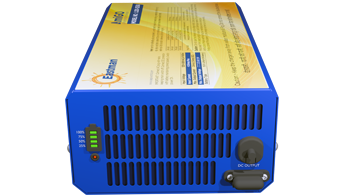

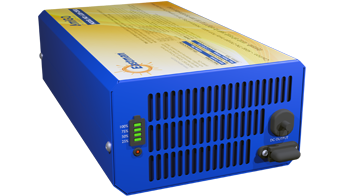

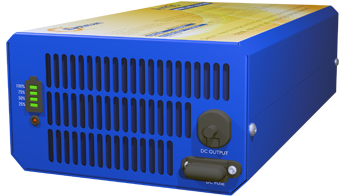

LI20 2558

  • Voltage: 48VA
  • Warranty: 24 Months
  • Current: 18A

Features

Battery Over
Charge Protection

Reverse battery
protection

Smart led /7
segment display

8% Extra mileage
for the same
amount of time

Revives deep
discharged battery
@ 6.25V per battery

Widest input
working range
90V - 300V

Fast charging
builds gravity
faster among its peer

Technical Specifications

LI20 2558
Warranty2 years
Input Voltage working range125-300V ± 10V
I/PV range @ Full Rated o/p current170-280V ± 10V
Input frequency47-63 Hz
Input power factor0.995 TO 0.925 UPTO 270V,DERATE AFTER 270V
Max. output voltage57.4V±1VDC
Output current25 ± 1A
Half Mode Output Current11 ± 1A
Efficiency @full load>90%
Line / Load Regulation< 2%
Charging profileCC-CV
Operating Temperature0°C to +50°C
Storage Temperature10°C TO +60°C
Dimensions282*160*92
Dimensions with packing410*204*156
Net Weight3.18
Gross Weight3.76
Explore ER Charger Combo
Locate a Store
Download Catalogue
Contact Us

Download Catalogue

Interested in buying
our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

FAQs

An e rickshaw charger efficiently powers your e-rickshaw, ensuring optimal battery performance and longevity for smooth rides.

Select the right e rickshaw charger by considering battery compatibility, charging speed, and safety features for your e-rickshaw.

Our chargers are the best e rickshaw chargers in India, ensuring reliability, efficiency, and top-notch performance for your vehicle.
